Cluster (desktop & browser)

 Cluster and collapse complexity to provide an abstract view with less detail

From the control panel (expand the left side if not visible) select the Cluster/Tier tab and then:

  • Chose whether to cluster by node type or by attribute, expand the required selection

  • Toggle clustering on and off a needed

  • Once a cluster is on other cluster options will be disabled until clustering is turned off

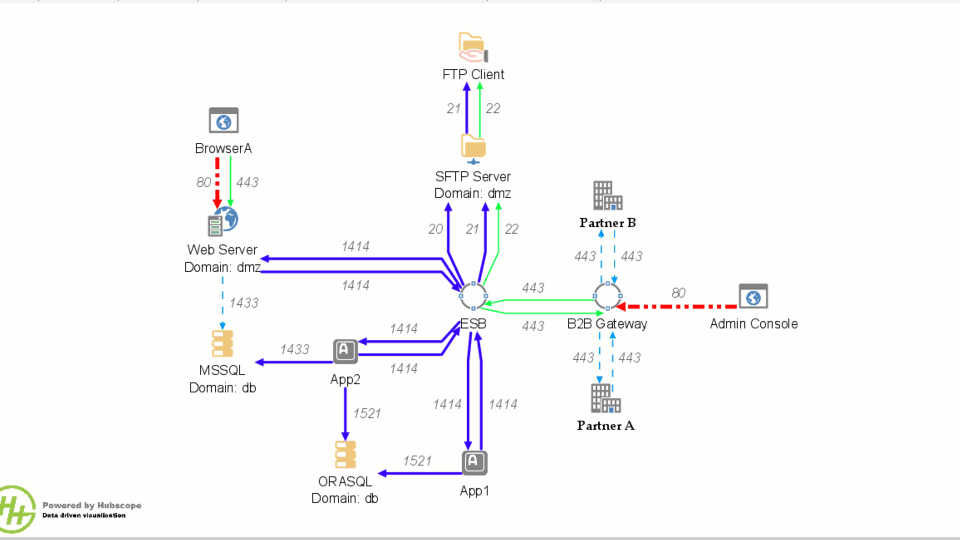

Once clustered collapse and expand the clusters using these toolbar buttons:


Collapse the current clusters


Expand the current clusters

click to expand

Apply granular cluster expand and collapse options by right mouse clicking on a cluster and selecting a contextual action
